FEATURES
Standard dimension
Thickness tolerance
Flatness tolerance
Standard grid
Standard slit width
Operating conditions
Protective coating
6000 x 2500 mm
EN10029 Class B
EN10029 Class N steel type H
19 slits in length, 7 slits in width of plate
2.4 mm over full depth of Top wear Layer
-46 °C min, 200 °C max
UV shop primer 75 µ optional
IN STOCK 6000 x 2500 mm plate
Thickness (mm)
12
14
18
20
25
30
Weight (kg)
1412
1647
2118
2354
2942
3530
50%-50%
6h+6 mm
7h+7 mm
9h+9 mm
10h+10 mm
12,5h+12,5 mm
15h+15 mm
60%-40%
7h+5 mm
​
​
12h+8 mm
15h+10 mm
67%-33%
​
9h+5 mm
12h+6 mm
13h+7 mm
EASY HANDLING
Fedur plate is easy to use.
-

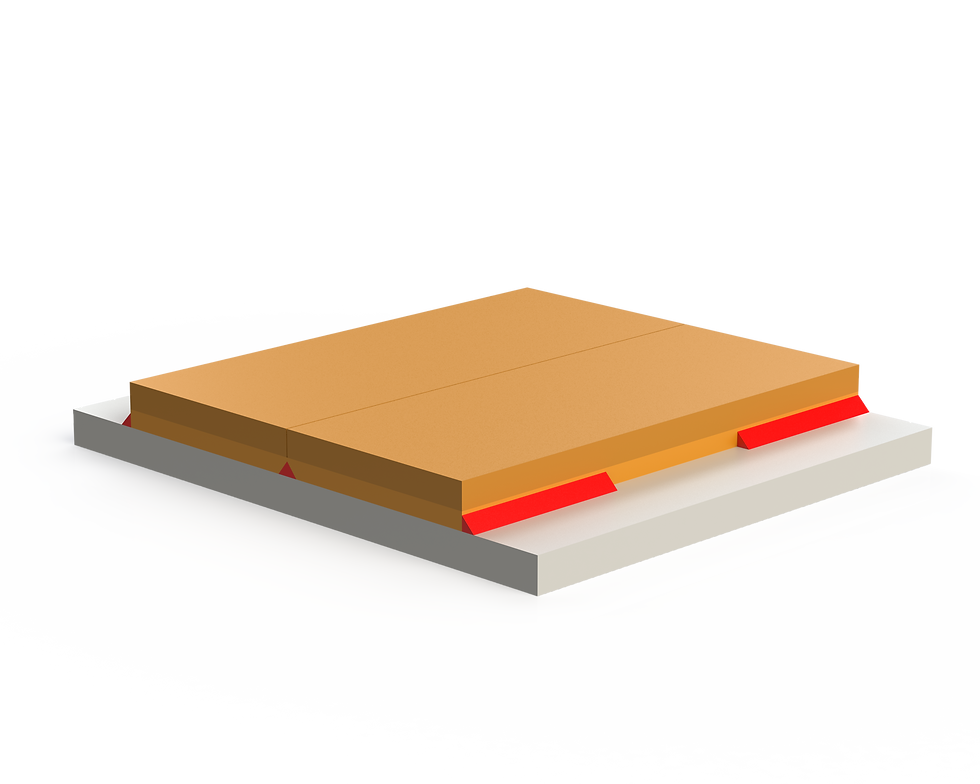

Fedur's Base Layer is ductile, tensile, tough and easily weldable.
-

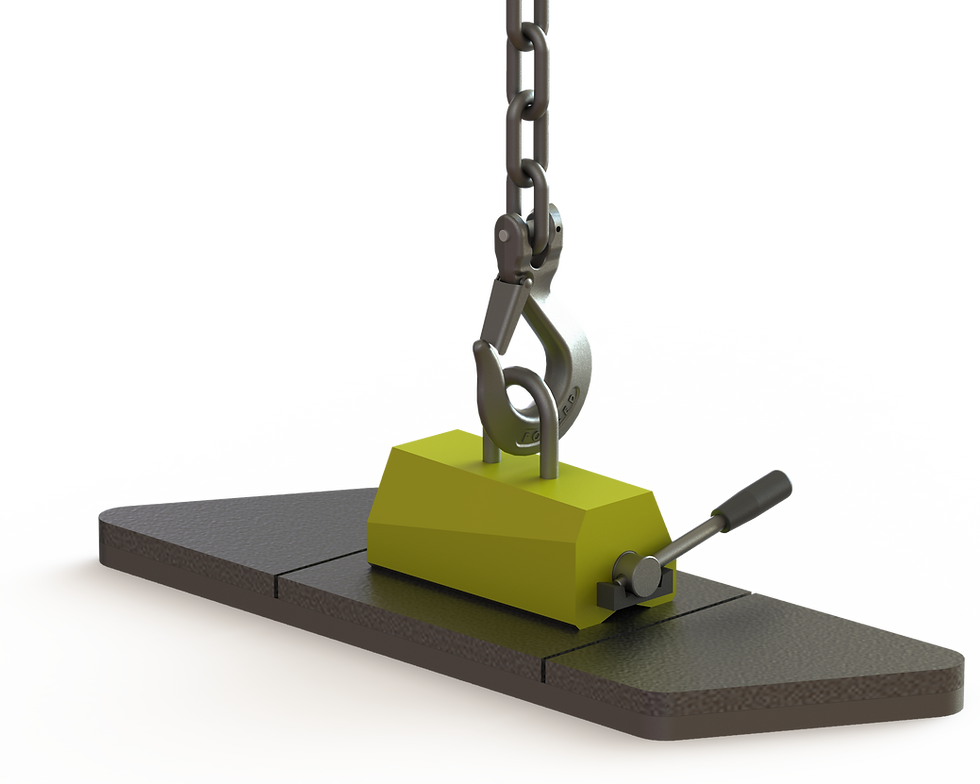

Fedur can be safely moved with the help of lifting magnets.
-
Fedur plates can be cut with torch, plasma or waterjet.
-
Fedur plate can be measured ultrasonically, which makes it easy to monitor remaining thickness.
Fedur plate is available in the following options:
• Plates with standard dimensions in different Top wear Layer - Base Layer thicknesses
• Custom-made plates
• Manufactured according to the client's specifications

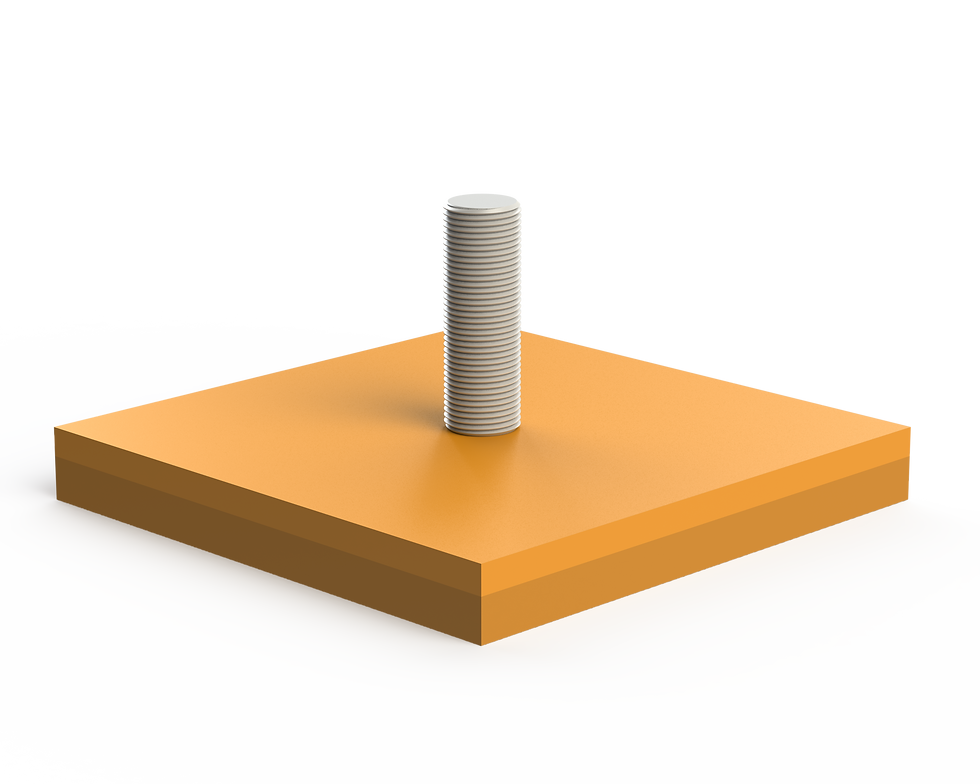

• Available with welded studs with threaded ends
