FEATURES
Standard dimension
Thickness tolerance
Flatness tolerance
Standard grid
Standard slit width
Operating conditions
Protective coating
6000 x 2500 mm
EN10029 Class B
EN10029 Class N steel type H

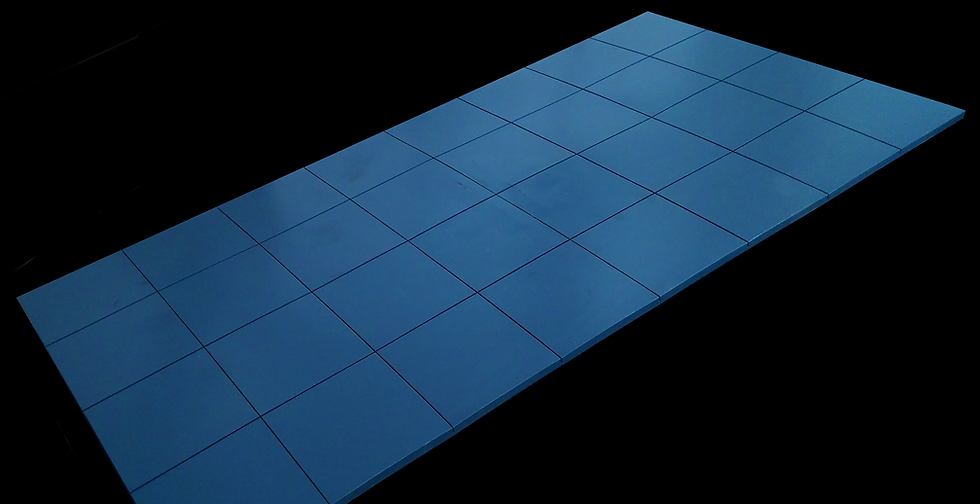

19 slits in length, 7 slits in width of plate
2.4 mm over full depth of Top wear Layer
-46 °C min, 200 °C max
UV shop primer 75 µ optional
IN STOCK 6000 x 2500 mm plate
Thickness (mm)
12
14
18
20
25
30
Weight (kg)
1412
1647
2118
2354
2942
3530
50%-50%
6h+6 mm
7h+7 mm
9h+9 mm
10h+10 mm
12,5h+12,5 mm
15h+15 mm
60%-40%
7h+5 mm
12h+8 mm
15h+10 mm
67%-33%
9h+5 mm
12h+6 mm
13h+7 mm

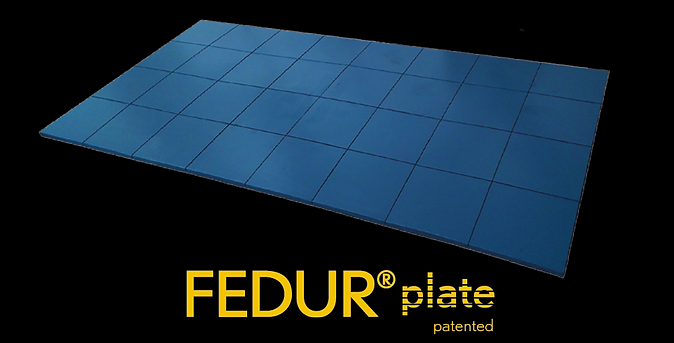

WHAT IS FEDUR?
-
A unique wear resistant bimetal
-
The wear resistant Top Layer and ductile Base Layer are metallurgically bonded
-
The Top Layer is extremely hard ≥ 62 HRc (800HV), up to the Base Layer
-
The Base Layer acts as impact absorber and provides pressure containment in fittings
-
The Base Layer is easily weldable
-
Fedur has a smooth Top Layer surface due to its fine grain structure
-
Wide range of fedur plate thickness in stock
-
Various Top/Base Layer ratios available
-
Wear resistant Top Layer up to 50 mm thickness
BENEFITS
EXTREME IMPACT RESISTANT
Fedur plate has extremely high impact resistant properties.
Fedur plate is a bimetallic plate that offers a combination of...
EXCELLENT ABRASIVE RESISTANT
Fedur plate has excellent abrasive resistant properties.
With our in-house design and engineering capacities, we are able...
LONG LIFESPAN
Fedur wear plates will last a long time and bring hours of trouble-free production, lower maintenance costs and less standstills.
REDUCES DOWNTIME
Our Fedur plates for your focus on up-time and durable products.
Using Fedur reduces the need for replacing parts, means less...
EASY HANDLING
Fedur plate is easy to use.
Fedur's Base Layer is ductile, tensile, tough and easily weldable.
100 % RECYCLABLE
Fedur is 100% recyclable and has a low CO2 footprint.
NO TOXIC WASTE PARTICLES/FINES
With the use of Fedur plate you don’t create toxic waste particles or...
EASY TO MONITOR
Fedur plate is easy to monitor. Ultrasonic testing can be performed externally. Despite the two layers of Fedur plate you only measure...
APPLICATIONS
TECHNICAL INFO
TOP LAYER
Hardness ≥ 62 HRc
Consistant hardness
High wear resistant
Fine grain microstructure
Patented grid
Smooth surface
BASE LAYER
Hardness < 200 HB
Excellent weldability
S23512/ASME SA516 gr.60
Ductile and tough
Works as absorber
Tensile strengt min. 415 MPa
Charpy V 260Joule/-46 ˚C
Elongation min.28%
